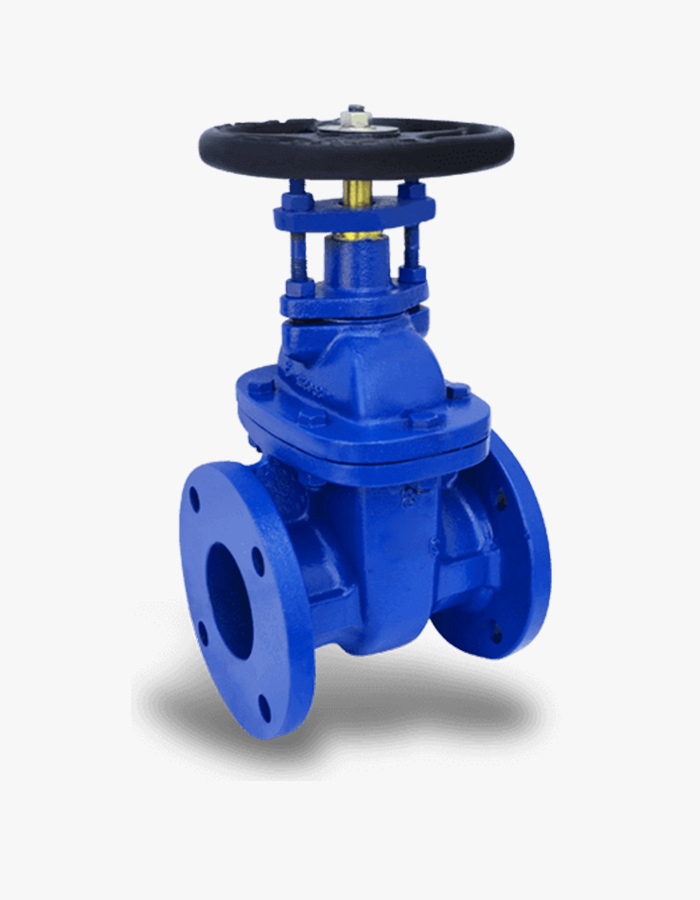

Gate valves (also known as knife valves or slide valves) are linear motion valves in which a flat closure element slides into the flow stream to provide shut-off. Gate valves and knife valves are designed to minimize pressure drop across the valve in the fully opened position and stop the flow of fluid completely. Gate valves and knife valves are advantageous in applications involving slurries, as their “gates” can cut right through the slurry.
| DESIGN STD | API 600 |
| TESTING STD | API 598 |
| END | SCREWED, SOCKET AND FLANGED |
| MOC | CI, WCB, CF8 OR SS 304, CF8M OR SS316 etc |
| RATING | 150#,300#,600#,800#,1500# |
| SIZE RANGE | ½” to 16” |
| Flange to Flange STD | ASME B16.10 for flanged |
| Flange Dimension Std | ASME B16.10 |
| Thread and Socket Std | BSP, NPT (thread), ANSI (socket) |
| Size | Small, Medium, Large & Extra Large |
| Color | Read, Blue, Green & Black |
| Length | 35 cm |
| Fabric | Cotton, Silk & Synthetic |
| Warranty | 6 Months |
