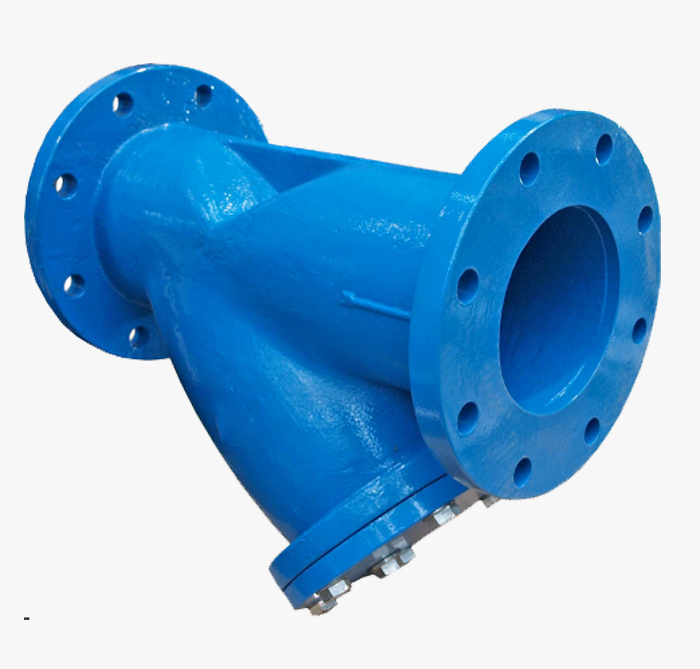

They are most commonly used in hassled lines, gas or liquid, but can also be used in suction or vacuity conditions. They are projected for applications where small amounts of solid particulate are expected, and where clean-out will be sporadic. Different Type are duplex stainless steel strainers,aluminium bronze strainers etc.
| END | SCREWED, SOCKET AND FLANGED |
| MOC | CI, WCB, CF8 OR SS 304, CF8M OR SS316 etc |
| RATING | 150#,300#,ND-16,ND-40 |
| SIZE RANGE | ½” to 16” |
| Flange to Flange STD | ASME B16.10 for Flanged and ND-40 |
| Flange Dimension Std | ASME B16.10 ,BS10 T/F,T/E, ND-16 AND ND-40, |
| Thread and Socket Std | BSP, NPT (thread), ANSI (socket) |
