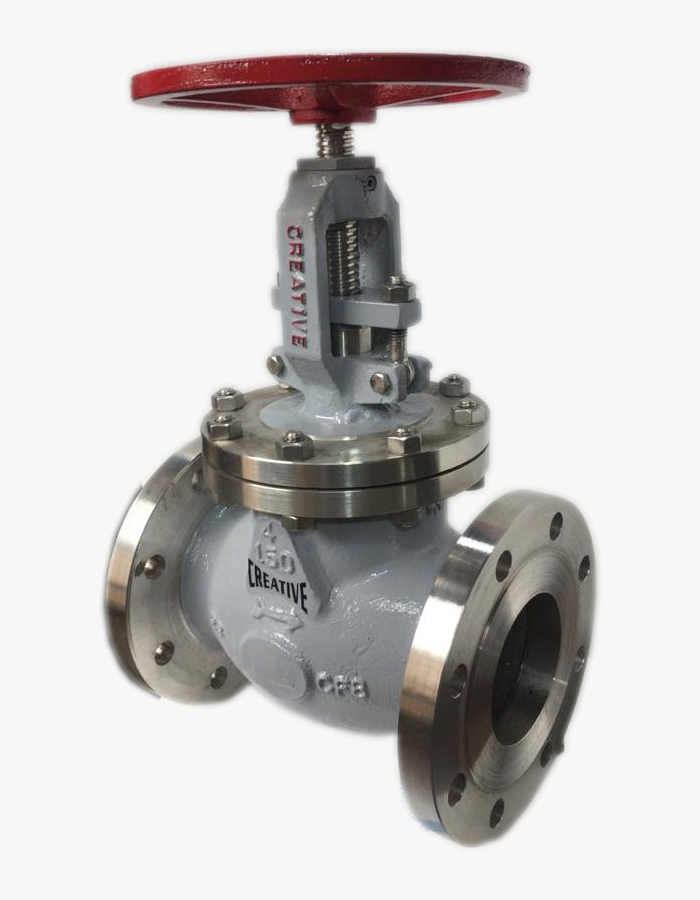

Globe valves are linear motion valves with rounded bodies, from which their name is derived. They are widely used in industry to regulate fluid flow in both on/off and throttling service. Globe valves consist of the following moving parts – the disk, the valve stem, and the hand wheel. Globe valves provide the following advantages: they offer precise throttling and control and have high-pressure limits.
| DESIGN STD | BS 1873 |
| TESTING STD | API 598 |
| END | SCREWED, SOCKET AND FLANGED |
| MOC | CI, WCB, CF8 OR SS 304, CF8M OR SS316 etc |
| RATING | 150#,300#,600#,800#,1500#,ND-16,ND-40 |
| SIZE RANGE | ½” to 16” |
| Flange to Flange STD | ASME B16.10 for flanged and ND-40 |
| Flange Dimension Std | ASME B16.10 , BS10 T/E,F,ND-16 AND ND-40 |
| Thread and Socket Std | BSP, NPT (thread), ANSI (socket) |
